High-speed Steel Coil Slitting Production Line This longitudinal shearing prodcution line used for Slitting and winding of steel plates. Unwind the large coil plate, slitting it into several strips according to the required width, and then winding it up, bundling it into strips for cold bending, stamping, welding steel pipes and other subsequent processes.

Introduction

Steel Plate  Slitting Production Line

High-speed Steel Coil Slitting Production Line

This longitudinal shearing prodcution line used for Slitting and winding of steel plates. Unwind the large coil plate, slitting it into several strips according to the required width, and then winding it up, bundling it into strips for cold bending, stamping, welding steel pipes and other subsequent processes.



Steel Plate  Slitting Production Line

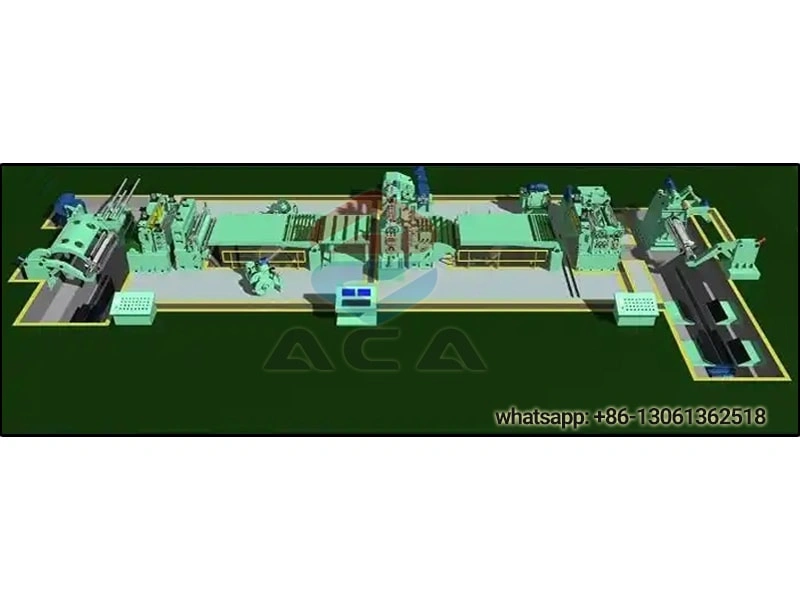

General composition of the production line:

Large steel coil loading trolley - >double loading unloading -> pressure head, shovel head - >steel coil double roller feeding, five-roller leveling - shear head - >looper (1) - >deviation correction - >circular knife shearing -> waste wire winding - >looper (2) - pre-splitting, tension machine, length measuring roller -> winding, pressing and splitting - unloading trolley - >hydraulic control >- electrical control (PLC touch screen operation)

Material: hot-rolled steel strip, galvanized steel strip, cold-rolled steel strip, stainless steel strip, aluminum strip, etc.

Technical Features:

1. PLC control operation, high level automation.





Steel Plate  Slitting Production Line

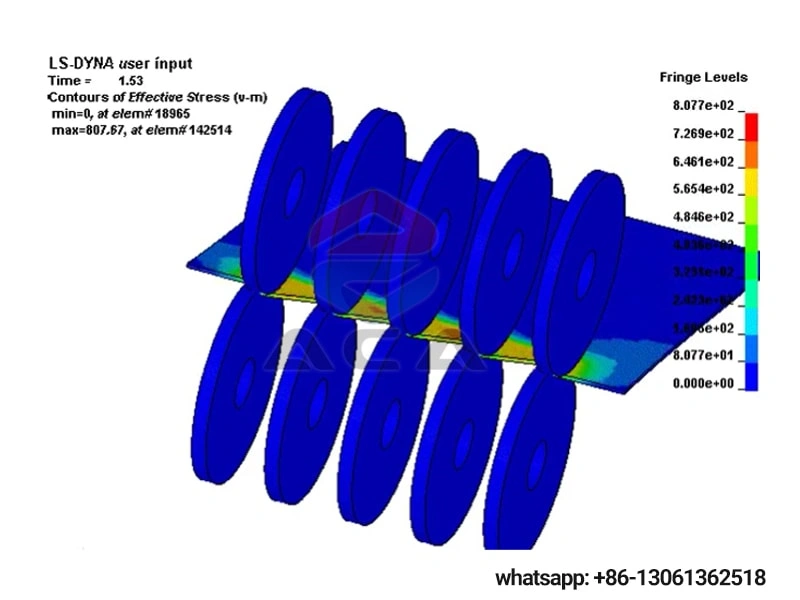

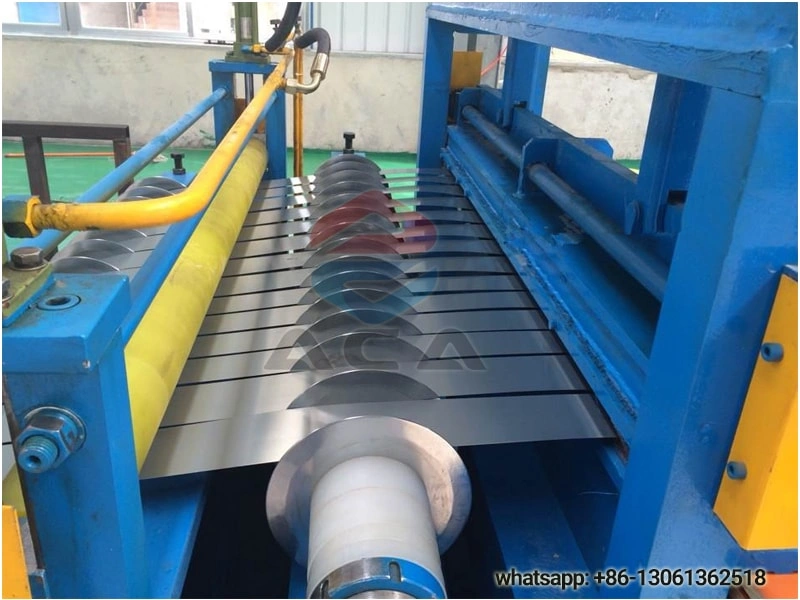

2. Cutting steel plates without burrs, small knife shaft deflection.



Steel Plate  Slitting Production Line

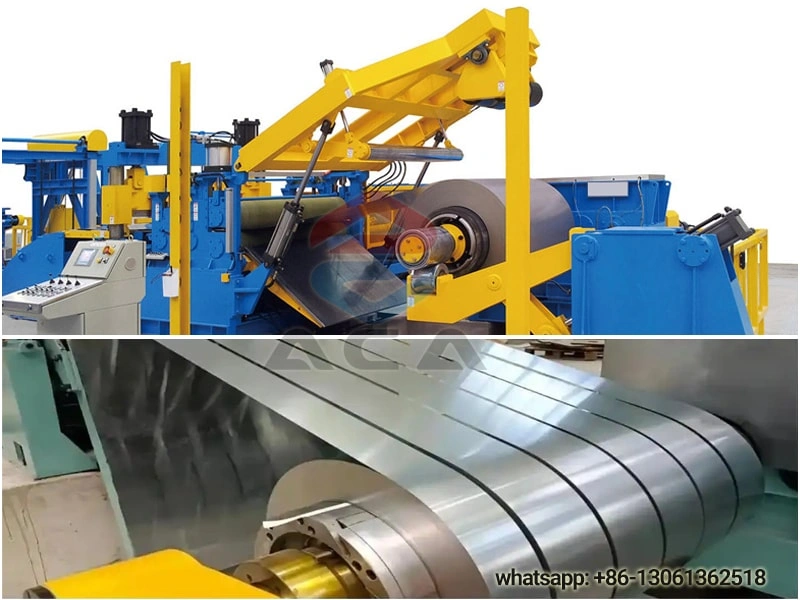

3. High coiling accuracy, increase coil diameter through movable brake device.







4. Meet the slitting and coiling of thin-walled and thick-walled steel plates without damaging the edges of the coils.

5. Applicable coil width: 500-1250mm; 800-2000mm; 900-2200mm.

6. Applicable plate thickness: 0.3mm-20mm.

7. Shearing speed: maximum can reach 150m/min.
