We can produce API Oil and gas steel pipe welding production lines, Drinking Water pipe welding machines, Precision aluminum pipe welding machines, Automobile exhaust pipe machinery and equipment and other straight seam high frequency welded pipe production line. After relevant adjustments, the same production line can realize the production of multi-purpose steel pipes from round pipes to square pipes.

ERW Tube Mill Line

Production Process：

Uncoiling→ Leveling → Shear and butt welder →Accumulator → Forming → HF Weld → Cooling → Shaping →Speeding→ Straightening → Cutting → Unloading Pipe → Finished Pipe

Parameter

TubleMill Model	OD Range (mm)	Thickness Range(mm)	Line Speed(m/min)
ACA-25	7.6-25	0.3-1.5	120
ACA-32	12.7-32	0.4-2.5	120
ACA-63	20-63.5	0.7-3.0	90
ACA-90	38-127	1.2-4.5	75
ACA-140	40-140	2.0-5.0	70
ACA-165	76.2-168	2.0-6.0	50
ACA-219	89--219	2.0-8.0	50
ACA-273	89-273	3.0-12.0	40
ACA-325	89-325	3.0-12.7	40
ACA-406	114-406	4.0-16.0	40
ACA-508	219-508	4.0-19.1	40
ACA-610	273-610	4.0-19.1	40
ACA-660	273-660	4.0-22	40

Introduction

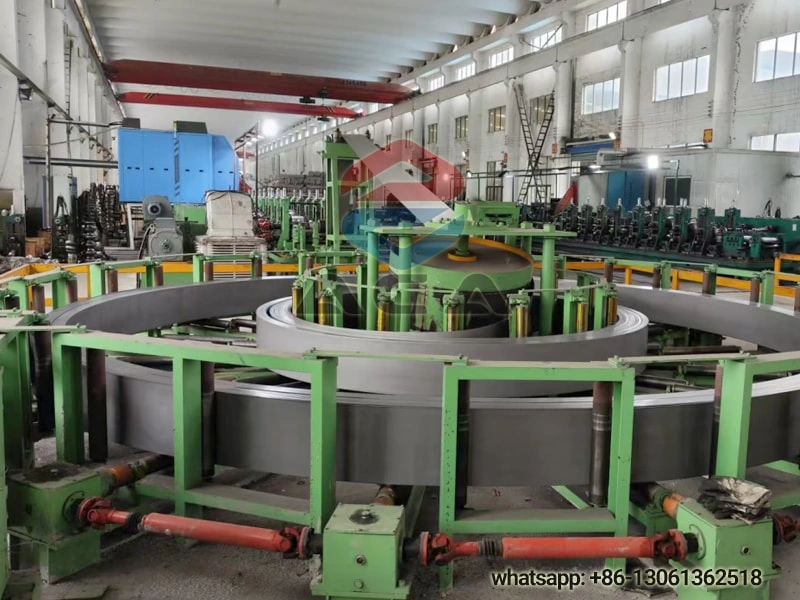

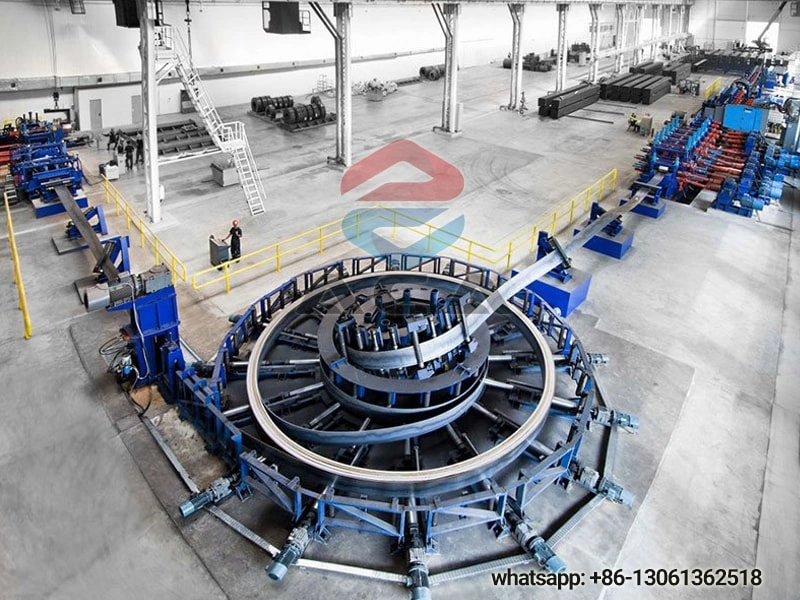

Steel Plate accumulator

High-strength frame, suitable for high-strength steel, thick-walled round tubes, square tubes.

The height of the frame and rollers can be selected to be raised or lowered asynchronously or synchronously, and a precision adjustment device is used to ensure production and molding according to different pipe diameters.

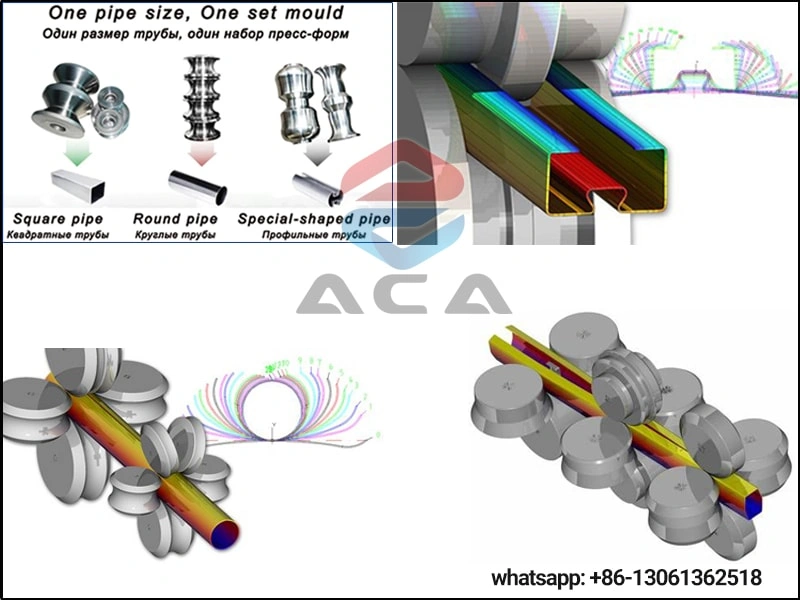

We can produce special-shaped pipes, structural and building material pipes according to user needs.
