3PE Coated Pipe Line

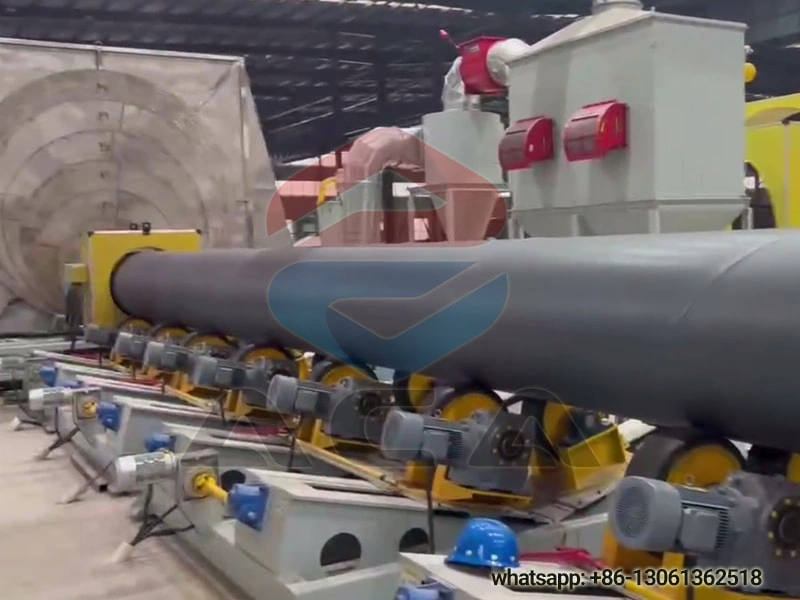

We can manufacture complete Steel pipe Inner and Outer Wall Anti-corrosion Treatment Production Lines: Steel pipe Inner and Outer wall Sandblasting and Rust removal Equipment, 3PE pipeline Anti-corrosion Treatment Production line, Inner and Outer Epoxy Plastic Coated Anti-corrosion steel pipe Machinery, Food grade Non-toxic IPN8710 Anti-corrosion Steel pipe production Making machine, Outer 3PE Inner reinforced powder Anti-corrosion Steel Pipe Processing Production Line, Outer PE inner EP plastic Coated Steel Pipe Processing Production Line. We can meet users' anti-corrosion treatment requirements for steel pipes for oil transportation, natural gas transportation and drinking water transportation in accordance with API standards.

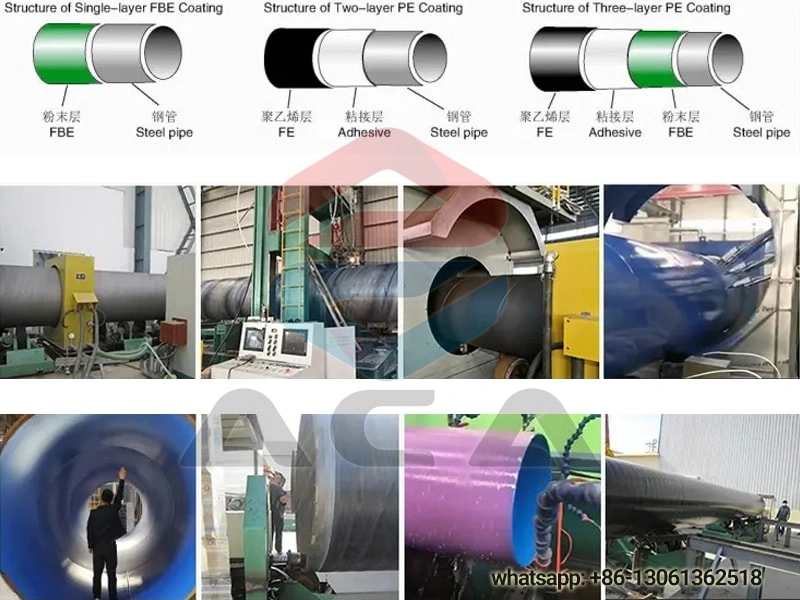

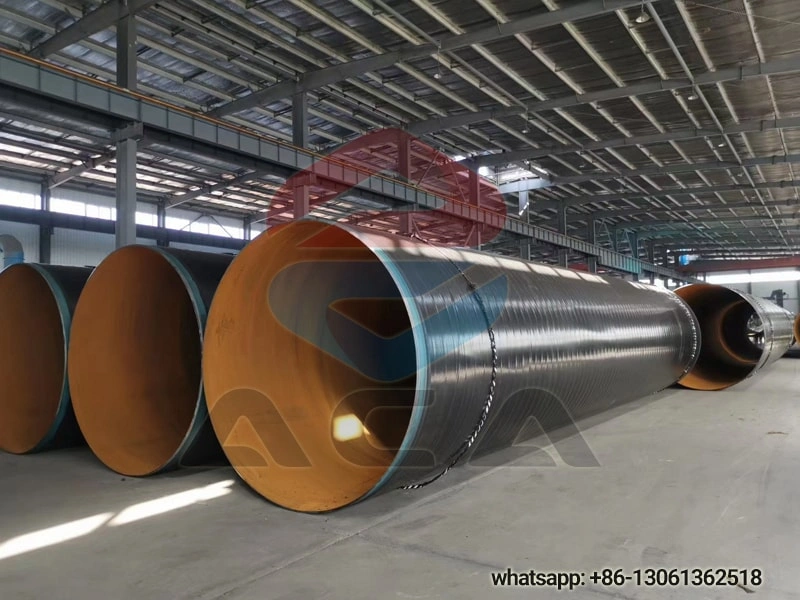

1. 3PE anti-corrosion steel pipe structure, the outer wall anti-corrosion form of the steel pipe 3PE anti-corrosion generally consists of a 3-layer structure.

1). First coat of epoxy powder（FBE>100um）

2). Second layer of adhesive（AD）170～250um

3). The third layer of polyethylene（PE）1.8～3.7mm

2. There are two types of Anti-corrosion for the Inner wall of steel pipes: one is Hot-melt Epoxy Resin powder anti-corrosion , and the other is liquid epoxy coating, commonly used liquid epoxy IPN8710 (normal temperature cold spraying) Or Phenolic resin.

3.  Epoxy powder spraying system: According to different pipe diameters, 8 to 24 spray guns of different numbers are configured to ensure uniform spraying and good effect.

•
•
•

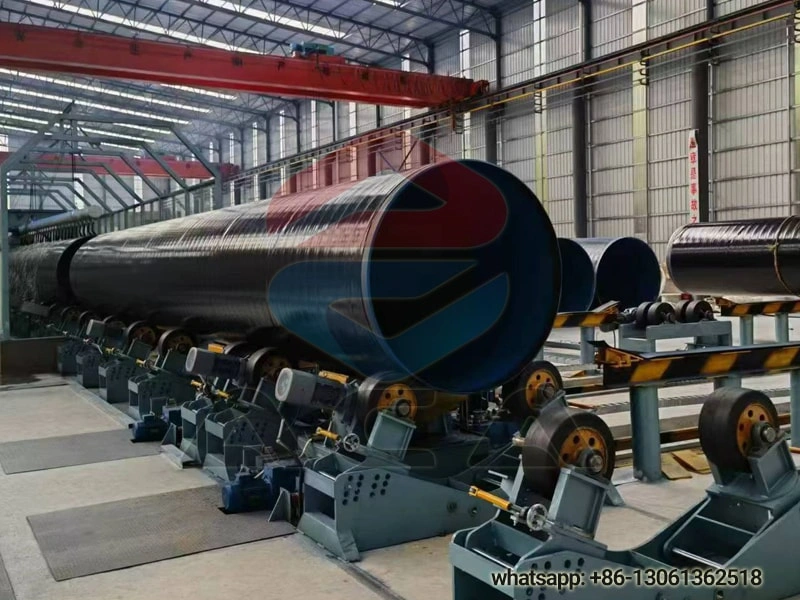

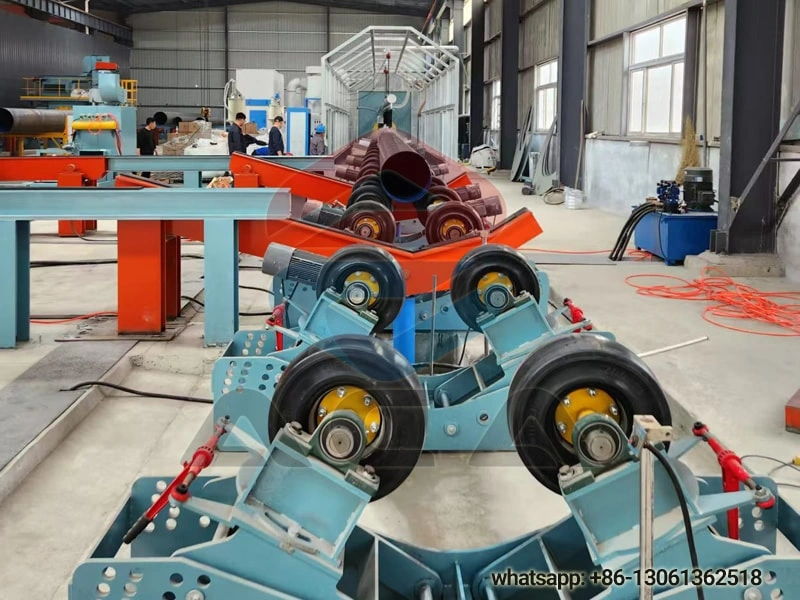

4. Steel pipe spiral conveyor line.
