The max pipe bending angle from 10-110 (pipe length 12meter) .

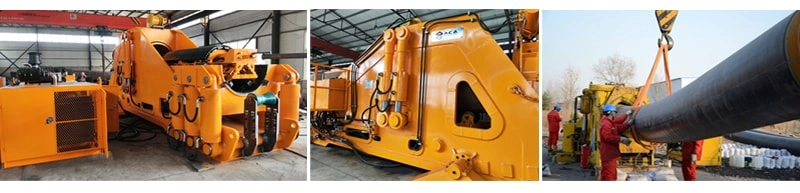

We make the Pipe bender is vertical hydraulic cool bender machine. It suitable for bending processing of SSAW, LSAW pipe lines, spiral steel pipes, straight seam pipes, ERW tube, and seamless steel pipes, facilitating pipeline construction. It is also suitable for bending pipes with internal and external corrosion protection layers, such as 3PE pipe. Our bending molds we provide do not damage the corrosion protection layer of the steel pipe.
The max pipe bending angle from 10-110 (pipe length 12meter) .
The Technical of the ACAWG series Pipe Lines Vertical hydraulic Bender Machinery：
|
(pipe-bending machine model) |
ACAWG600 |
ACAWG762 |
ACAWG1000 |
ACAWG1220 |
ACAWG1620 |
|
(bending pipe diameter range) |
Φ168-Φ508mm |
Φ406-Φ762mm |
Φ559-Φ914mm |
Φ711-Φ1219mm |
Φ1219-Φ1524mm |
|
(apply to bending style) |
Applicable to screwed pipe,straight-side slot tube,seamless tube and boring inner or outer erosion resistant coating steel tube's embowing system,not spoiling steel tube erosion resistant coating. |
||||
|
(operating temperature) |
-20℃~+50℃relative humidity : ≤ 85% |
||||
|
(engine power) |
46KW |
75KW |
125KW |
160KW |
160KW |
|
(hydraulic system pressure) |
16MPa |
16MPa |
16MPa |
16MPa |
21MPa |
|
(master hydraulic cylinder) |
2pieces 220×350 |
2pieces 280×500 |
4pieces 320×500 |
4pieces 450×560 |
6pieces 360×560 |
|
(lift hydraulic cylinder) |
2pieces 180×200 |
2pieces 200×200 |
4pieces 220×200 |
4pieces 280×200 |
4pieces 280×200 |
|
(hydraulic winch pull) |
1.5t |
2.5t |
7t |
8t |
12t |
|
(track) |
Assembled track is panseal lubrication and avoding attendance type,it is true of working at frigid climate particularly,after depsoiting for a long time ,it can be used immediately,dispense with excess service. |
||||
|
(complete machine size(mm)) |
4450×2180×2175 |
6600×2650×2700 |
8400×3000×2800 |
9800×3335×3235 |
main machine:9875×3190×3500; power unit:4300×2280×2760 |
|
(complete machine total weight) |
about 8t |
about 20t |
about 42t |
about 68t |
about 93t |
|
Instruction for supporting molds |
Each bending set pipe is made of pipe bending mandrel and the out bending set (it includes the up set, the front clamp, the front bending set and the down bending set) which cooperated each other. A diameter of this pipe matches a kind of front bending set and the out one. |
||||
ACAWG1620 type Vertical hydraulic pipe bending Machine：
|
Pipe external diameter(mm) |
Maximum bending thickness(mm) |
Suggesting bending specifications |
||||||
|
X52 |
X60 |
X65 |
X70 |
X80 |
max bending angle in one step |
max bending angles (every 12m) |
Shift distance every time |
|
|
1219 |
48 |
48 |
48 |
48 |
38 |
0.5 |
10.5 |
300-400mm |
|
1270 |
48 |
48 |
48 |
44 |
35 |
0.5 |
10.5 |
|
|
1321 |
48 |
48 |
48 |
41 |
32 |
0.5 |
10.5 |
|
|
1372 |
48 |
48 |
48 |
38 |
30 |
0.5 |
10.5 |
|
|
1422 |
48 |
48 |
44 |
35 |
27 |
0.5 |
10.5 |
|
|
1473 |
46 |
44 |
40 |
36 |
25 |
- |
- |
|
|
1526 |
45 |
43 |
38 |
35 |
25 |
- |
- |
|
Note: The max bending angles apply for longitudinal-seam steel pipe, suggesting bending specification's 75% are for screw-thread pipes; the efficient bending length is 8m.
