This coated Pipeline was sold to a customer in Uzbekistan. ACA Group recently dispatched engineers to the customer's factory for installation and commissioning. The customer expressed great satisfaction with the quality of This coating line internal and external rust removal equipment, the internal coating (TPEP) treatment process, and the external coating (3PE) and spray coating quality.
Our steel pipe sandblasting machinery and rust removal quality reaches Clean Level >SA2.5.
As per customer request, Pipe coating type: FBE, 2lpe, 3lpe, 2lpp, 3lpp;

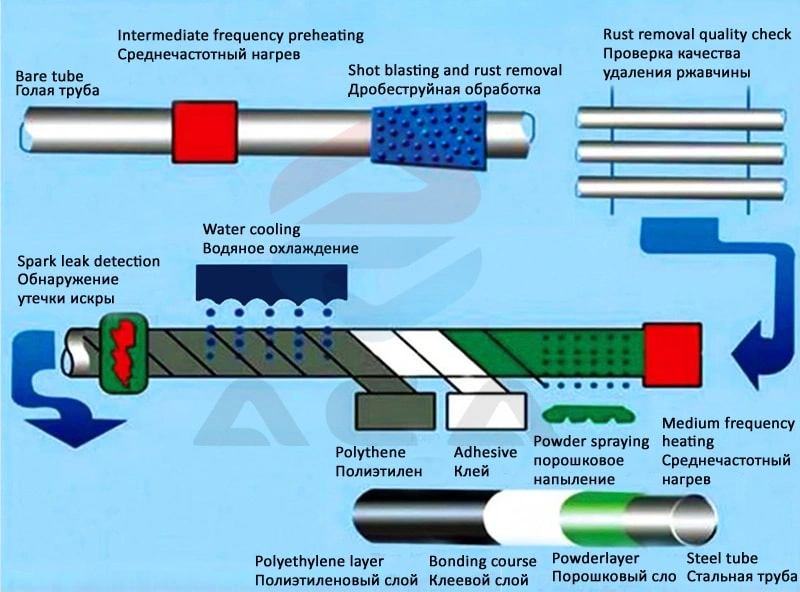

The three Layer PE Anti-Corrosion Coating structure:
-Bottom Layer: Fusion Bonded Epoxy (FBE) coating.
-Middle Layer: Adhesive layer.
-Outer Layer: Polyethylene layer.
This TPEP/3PE pipeline is provied steel pipe with internal and external anti-corrosion coatings protection for steel pipes diameters ranging from DIN219mm to DIN3125mm, meeting the needs of large-diameter steel pipes used in long-distance transportation oil, gas, and water supply, and other liquids applications.
ACA Group specializes in the production and manufacture of various steel pipe anti-corrosion treatment equipment, including 2LPE, 3LPE, 3PE, TPEP steel pipe inner and outer wall rust removal and anti-corrosion spraying treatment.
